Electromagnetic Lock
> Electronics Lock > Electromagnetic Lock

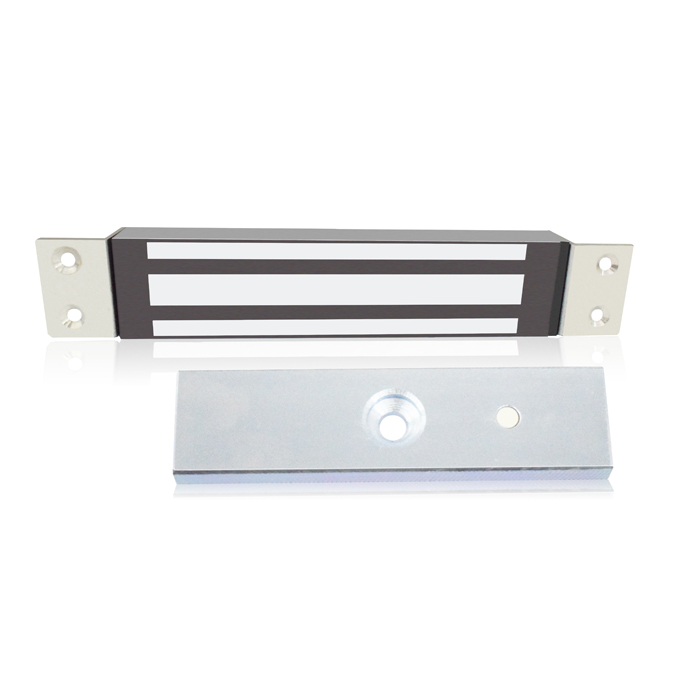

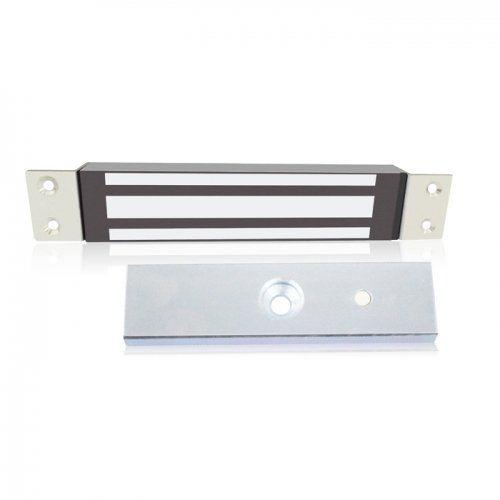

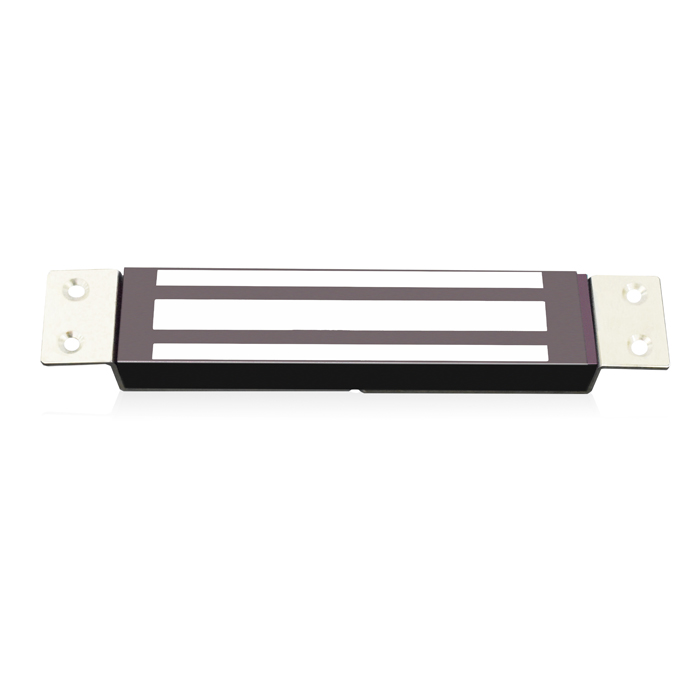

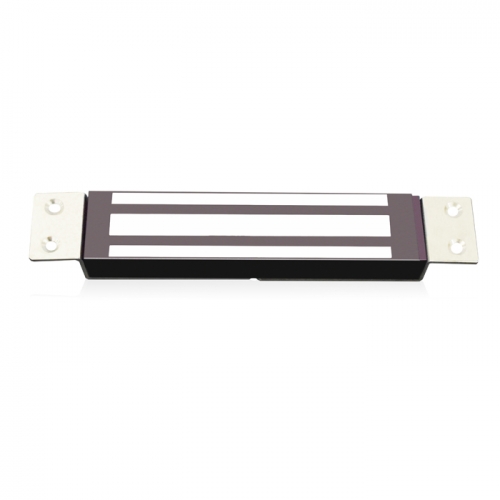

EM-180MS Single Door Electronmagnetic Lock with Mortise Mount And Lock Status Signal Output
  • EM-180MS Single Door Electronmagnetic Lock with Mortise Mount And Lock Status Signal Output
  • EM-180MS Single Door Electronmagnetic Lock with Mortise Mount And Lock Status Signal Output

EM-180MS Single Door Electronmagnetic Lock with Mortise Mount And Lock Status Signal Output

INQUIRY
Description
Quick Details

• Lock Dimension: L189*W33*H21.5mm
• Armature Plate Dimension: L130*W33*H11.5mm
• Working Votage: DC12V / 260mA or DC24V/130mA
• Holding Force:180KG（350Lbs)
• Surface Temp: ≤ +10℃ (Based on ambient temperature)
• Operating Temp:  -10~+55℃(14-131F)
• Humidity: 0~90%(non-condensing)
• Weight: 1.1KG
• Secure Type: Fail Safe
• Bracket Optional: BK-180Z
