Spec. |
Name |

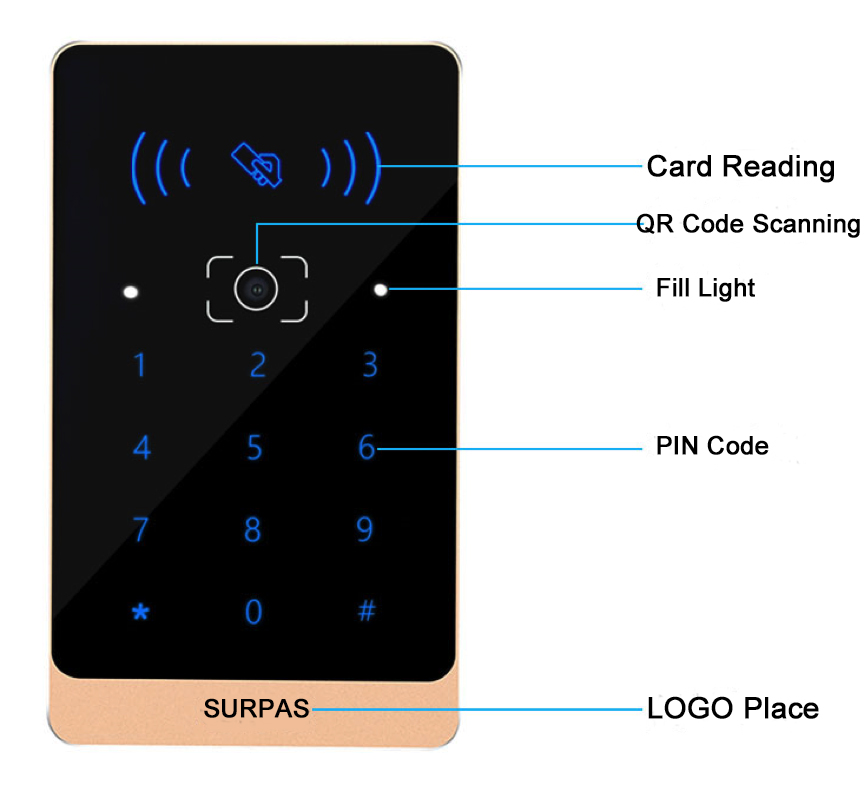

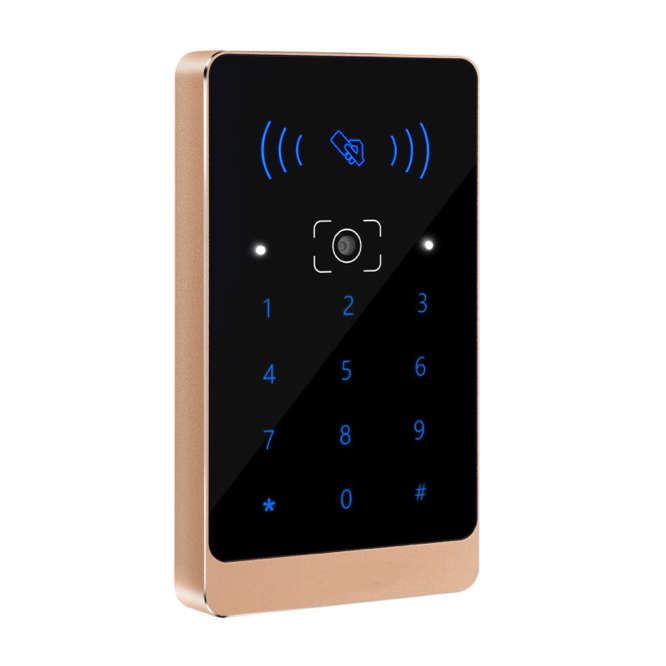

QR coder reader |
Model# |
SP-Q3 |
SP-Q2 |
Identify type |
QR cod/IC card/ID Card/PIN code |
QR Code/IC card/ID Card |
Output Format |
WIEGAND 26/34、RS485 |
Main CPU |
1GB Hz |
SYSTEM |
Linux |
Dimension |
108.8*63.8*12.65 mm |
Material |
Aluminum alloy + tempered glass |
Weight |
About 260g |
QR Code Spec. |
Sensor resolution |
640*480(30FPS) |
Read the types of QR codes |
QR code, PDF417,Data matrix,MicroPDF417,Aztec |
Read one dimensional code types |
UPC-A , UPC-E, UPC-E1, EAN-8, EAN-13,EAN-14, EAN-128, UCC128, ISBN/ISSN,CODE11, CODE32, CODE39, CODE39 Full ASCII, CODE93, CODE128 etc. |
Read the precision |
≥7mil |
Identify Speed |
80ms |
Sensor field of view |
80° horizontally, 51° vertically, 88° diagonally |
Scan angle |
Rotate 360°, front and rear ±40°, left and right ±60° |
Recognition distance |
5-20cm (test with WECHAT QR code) |
QR code support range |
Wiegand 26-bit support range (0-255), (1-65535); Wiegand 34-bit support range 1-4294967295; RS485 support range is 1024 characters |
Induction card parameter |
Card type supported |
Support ISO1443A/ISO1443B protocol card |
Working Frequency |
13.56MHz |
IC Read sector |
Support IC read sector(for optional) |
CPU Card |
Support CPU card, Read encrypted content (for optional) |
Reading Distance |
IC card:<3cm,ID Card:<1cm |
Electrical parameters |
Working voltage |
DC 9V~15V |
Working current |
150mA(12V) |
Standby current |
120mA(12V) |
Environmental parameters |
Waterproof level |
IPX7 |
Static class |
Air discharge ±8KV, contact discharge ±6KV (power supply needs effective grounding) |
Working Temperature |
-20°C~60°C |
Storage temperature |
-40°C~80°C |
Relative humidity |
No limited |
Environmental light |
Direct sunlight at noon, light source at night |
