TCP/IP Controller
SP-N2 Two Door Network Access Controller
  • SP-N2 Two Door Network Access Controller
  • SP-N2 Two Door Network Access Controller
  • SP-N2 Two Door Network Access Controller
  • SP-N2 Two Door Network Access Controller

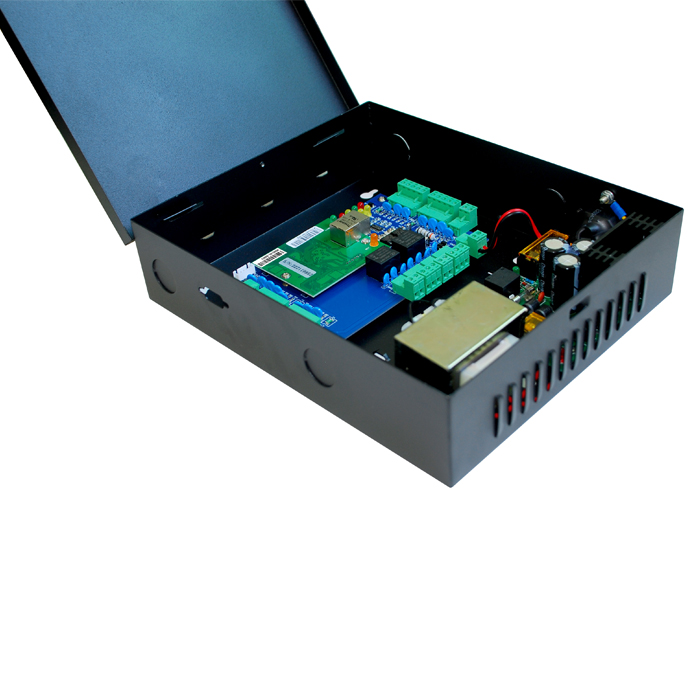

SP-N2 Two Door Network Access Controller

Product model: SP-N2
                          S-N2 (Panel only)
Product name: Two Door Network Access Controller
Working temperature: - 40 ~ 60 ° C
Communications: TCP/IP
Product size: L273*W228*H65mm
Weight: 3.5kg
INQUIRY
Communications: TCP/IP
Support Datebase: Access and SQL
User capacity:20000 users
Records(offline): 100,000(can be saved on controller permanently)

Power Supply:12VDC ,4-7A
Input Format of Reader:Wiegand 26 (All card reader with compatible protocol, such as HID, EM , Mifare etc)
Quantity of Readers:4 (In&Out for Two doors)
Way of opening door: card; card + PIN; multi-cards; first card etc
Door opening time extending setting:1-600 seconds(adjustable)
Opening door by multi-card: Swipe multiple cards, door will be opened
With software, control one door
Can set who/when/how can access

Conventional Function:Access;Time&Attendance;Offline operation; real time supervision; photo display; mass storage; flexible user privilege setup;remote unlocking; multi-user supervision
Professional function:Anti-passback and Anti-tail;Interfacelocking;Intimidation alarm;Integrated fire control;Interlocking;Multi-card unlocking etc
Language of Software kit: Chinese & English
Idle current: ≤120mA
 Input format of card data from reader: Wiegand 26, 34 bit
Input format of pressing keypad of reader: 4bit or 8bit (ACII)
 The maximum number of controller connecting in LAN: no limit
 Operating temperature: -40-60℃
 Operating humidity: 10-95%(non - condensing )
 The max distance between reader and controller: 100 meter (cable requirement: RVV0.3)
 The max distance between controller and controller: depending on network coverage.
Opening door by cell phone: Open door by cell phone through WIFI
