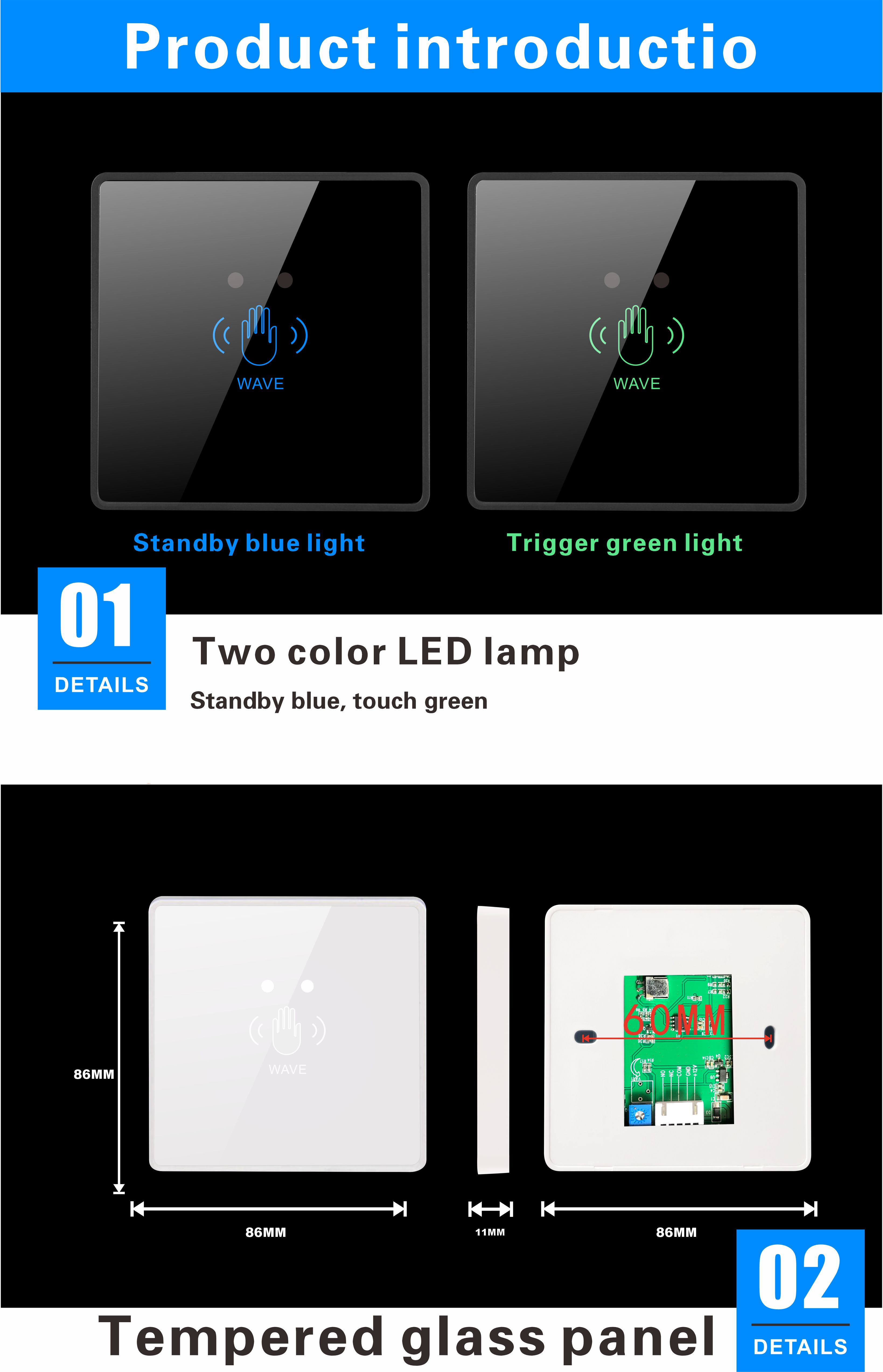

| Button Size: | 86*86*11mm |
| Battery Type: | CR2032 2PCS |
| Panel Material: | Acrylic or 5D Tempered Glass |
| Output: | NO/NC |
| Service Life: | 1000000 Times |

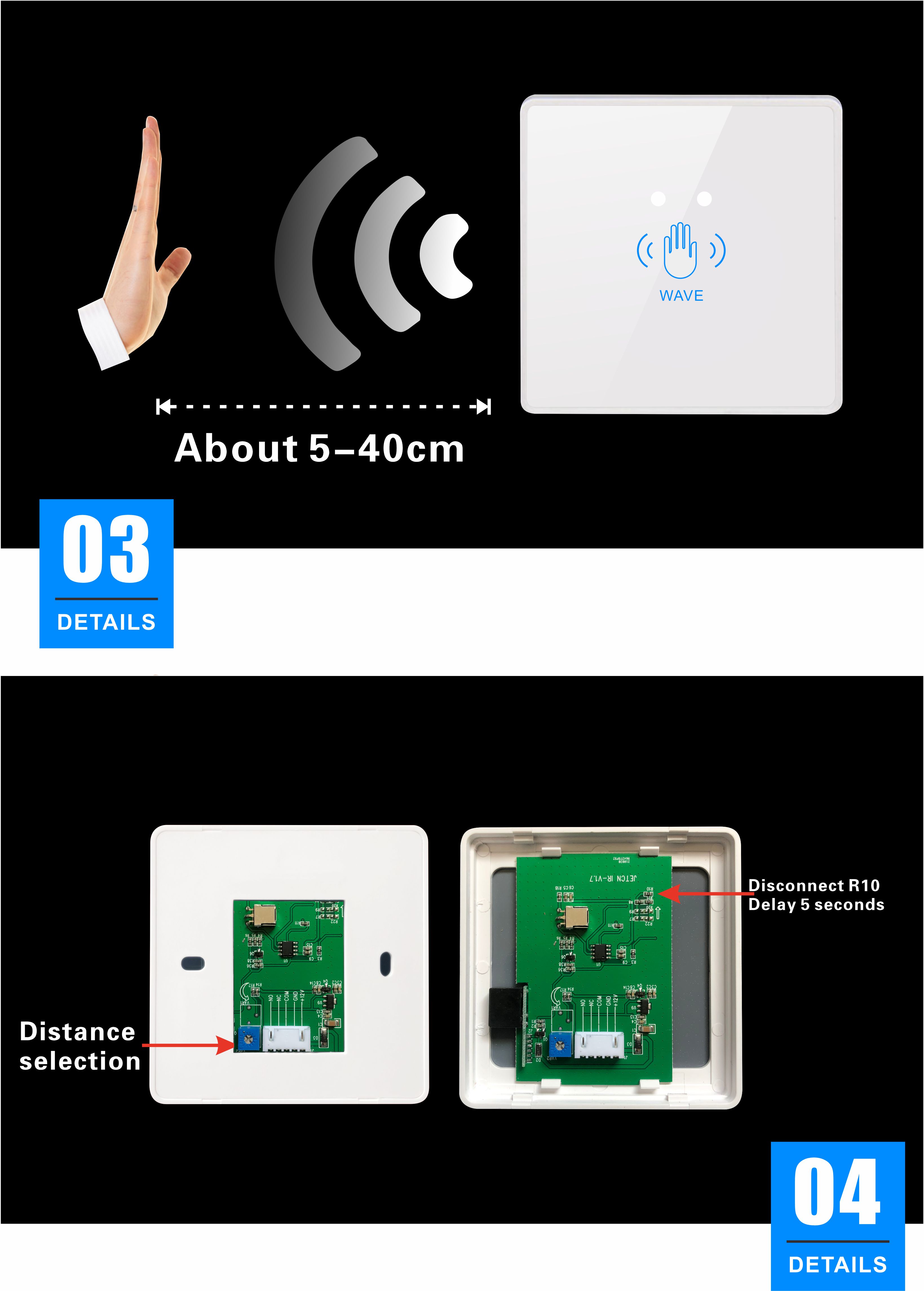

| Sensing Distance: | 1~3cm |
| Application: | Access Control/Auto Door／Turnstiles |
| Receiver Frequency: | 433.92MHz |
| Wireless Distance | 30 Meter |
| Receiver Specification (Type A) | |
| Receiver Dimension: | 42*37*22mm |
| Power Supply: | DC12V(24V customized) |
| Output: | NO/NC |
| Service Life: | 1000000 Times |
| Sensing Distance: | 1~3cm |
| Application: | Access Control/Turnstiles |
| Receiver Frequency: | 433.92MHz |
| Sensitivity: | 3~105dBm |
| Working Mode: | Self-locking mode/Manual Lock mode |
| Receiver Specification (Type B) | |
| Receiver Dimension: | 75*55*25mm |
| Power Supply: | DC12V(24V customized) |
| Output: | NO/NC |
| Service Life: | 1000000 Times |
| Sensing Distance: | 1~3cm |
| Application: | Access Control/Turnstiles |
| Receiver Frequency: | 433.92MHz |
| Sensitivity: | 3~105dBm |
| Working Mode: | Self-locking mode/Manual Lock mode |
